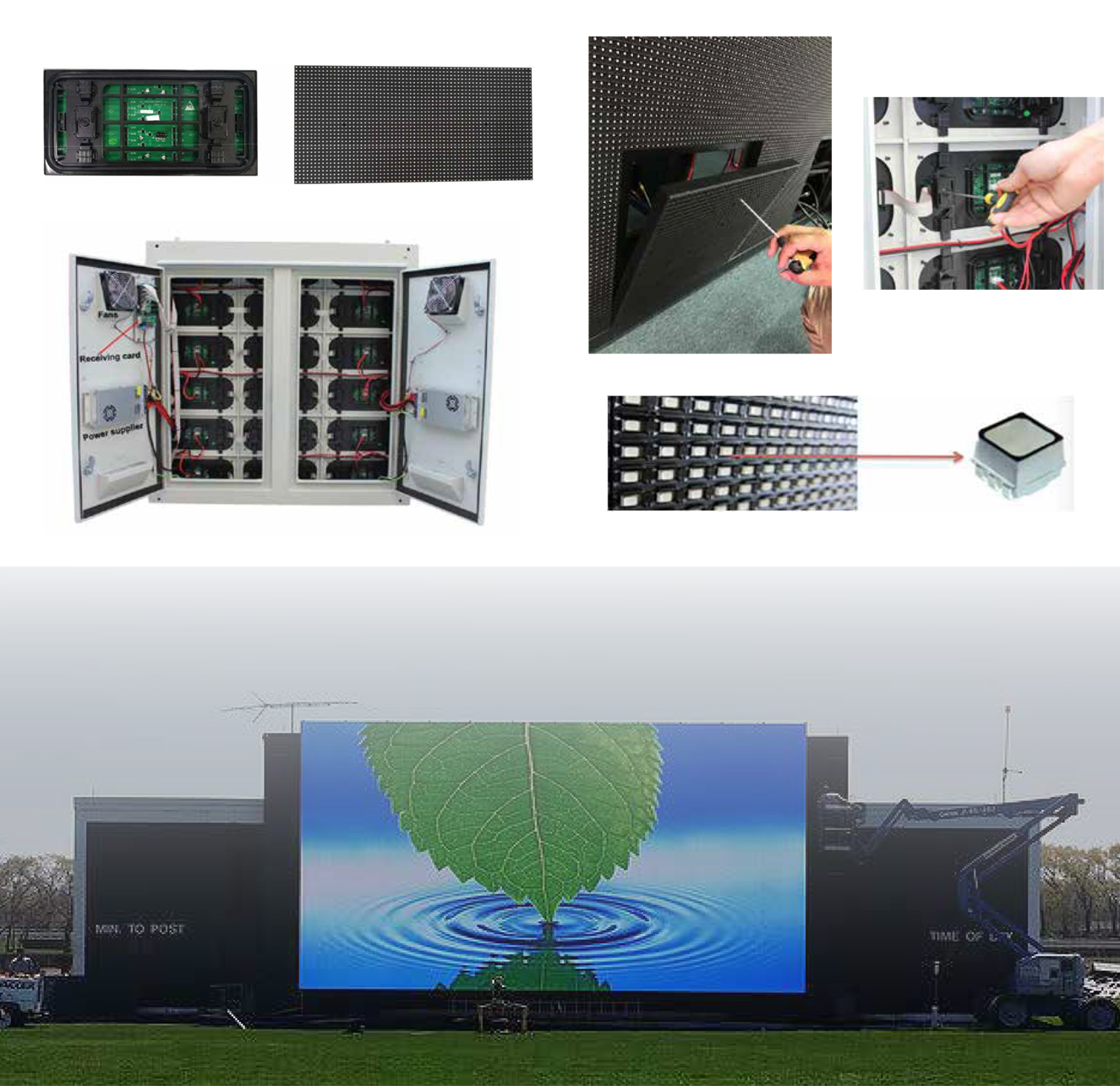

| Module Specifications | |
| Pixel pitch (mm) | 5 |
| Pixel Configuration | Nationstar SMDZ1921 (R/G/B) |
| Module Resolution (W*H dots) | 64*32 |
| Module Pixels (dots) | 2048 |
| Module Size (W*H mm) | 320*160 |
| Cabinet Parameters | |
| Cabinet Configuration (Module quality W*H) | ① 6*3; ② 6*2; ③ 2*6; ④ 4*2 |
| Cabinet Size (W*H mm) | ① 960*960 mm; ② 960*640 mm; ③ 640*960 mm; ④ 640*640 mm |
| Module Quality (pcs) | ① 18 pcs; ② 12 pcs; ③ 12 pcs; ④ 8 pcs |
| Cabinet Pixels (dots) | ① 36,864 dots; ② 24,576 dots; ③ 24,576 dots; ④ 16,384 dots |
| Pixel Density | 40,000 dots/m2 |
| Material | Aluminum |
| Cabinet Weight | 32.8 kg/sqm |
| One Screen Parameters | |
| Brightness | 6,000 nits |
| Brightness Contrast Ratio (Max./Min.) | 5,000 : 1 |
| Driving Method | 1/8 Scanning |
| View Angle | Horizontal 160° / Vertical 120° |
| Min Viewing Distance | 5 m |
| Grayscale Intensity | 16 bit |
| Color Depth | 16 bit |
| Refresh Rate | 3,840 Hz |
| Screen Wiring | Gold Wiring |
| Frame Frequency | 50 -- 60 Hz |
| Input Voltage | AC220V/50Hz |
| Defects Rate | ≤ 0.00001 |
| Power Consumtion | Max: 780/m3 Average:280W/m3 |
| Cabinet Weight | 32.8 kg/sqm |
| MTBF | > 10,000 hours |
| Life Span | ≥ 100,000 hours |
| Module Display Brightness Uniformity | < 3% |
| Earth Leakage Current | < 3 mA |
| Protective Grade | IP65 Front / IP54 Back |
| Temperature-operating | -20°C ~ 65°C |
| Humidity-operating | 10% ~ 95% |
