| Pixel Pitxh (mm) | 1.9 | 2.6 | 2.9 | 3.9 | 4.8 | |||||
| Panel Size (mm*mm) | 250*750 | 250*1000 | 250*750 | 250*1000 | 250*750 | 250*1000 | 250*750 | 250*1000 | 250*750 | 250*1000 |
| Panel Weight (Kgs) | 4.0 | 5.3 | 4.0 | 5.3 | 4.0 | 5.3 | 4.0 | 5.3 | 4.0 | 5.3 |
| Pixel Matrix Panel | 128*384 | 128*512 | 96*288 | 96*384 | 84*252 | 84*336 | 64*192 | 64*256 | 52*156 | 52*208 |
| Pixel Density (dot/m2) | 262,144 | 147,456 | 112,896 | 65,536 | 43,264 | |||||
| LED Type | SMD1010 (Nationstar) | SMD2121 (Nationstar) | SMD2121 (Nationstar) | SMD2121 (Nationstar) | SMD2121 (Nationstar) | |||||
| Brightness (cd/m2) | 700 | 800 | 800 | 1,000 | 1,000 | |||||
| Scan Type | 1/32 | 1/32 | 1/28 | 1/16 | 1/13 | |||||
| Module Size (W*H mm) | 250*250 mm | |||||||||
| Maintenance Method | Full Front Access | |||||||||

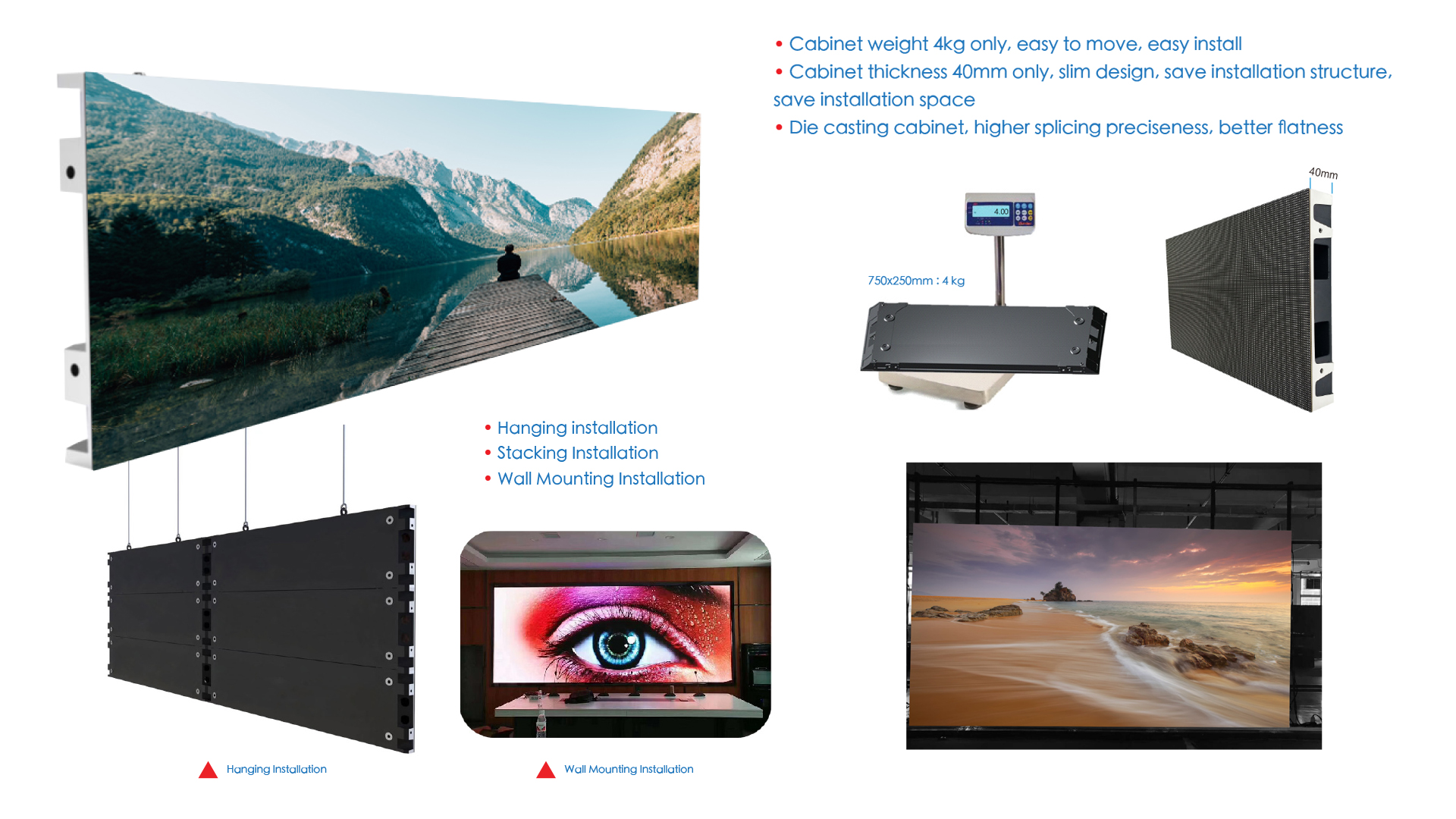

| Installation Method | Wall Mount/Hanging/Stack | |||||||||
| Colors | 281 Trillion | |||||||||
| Color Insenity | 16 bit | |||||||||
| Grey Scale Rate | 16 bit | |||||||||
| Viewing Angle | H 140 and V 120 | |||||||||
| Refresh | >=3840 Hz | |||||||||
| Defects Rate | <=0.00001 | |||||||||
| Lifespan | 100,000 Hours | |||||||||
| Ingress Protection* | IP65 | |||||||||
